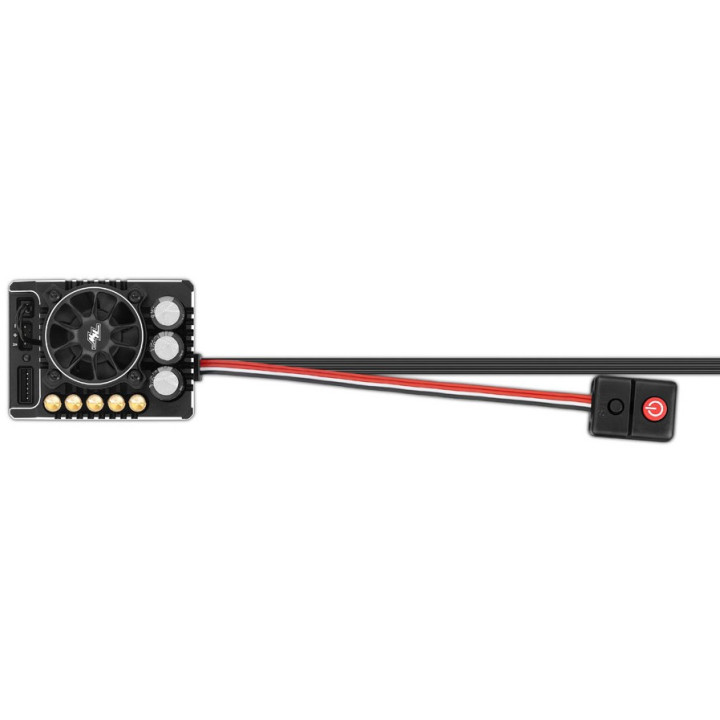

XR8 PLUS G2S Xerun 1/8 200A ESC 2-6S

Speed controller for 1/8 on-road cars, truggy and GT8, 200A (1080A in peak), used with 2S to 6S LiPo batteries.

Specifications:

• Supplied with 11 AWG (2.30mm) diameter cables

• In 4S Lipo: 4268/4274≤3000KV motors

• In 6S Lipo: 4274≤2400KV motors

• New frameless ventilation system (30x30x10) for better performance and better reliability

• 5 built-in common profiles, suitable for all 1/8 cars in competition, select and use instantly. (For example, Zero timing-Blinky mode, 1/8 all-terrain racing, 1/8 track, 1/8 GT GT8, 1/8 sport mode.

• 29 built-in adjustable parameters to set various power requirements.

• Settings can be imported and exported, allowing drivers to communicate and learn from each other by sharing their settings directly with their friends.

• Supports ESC software update (via V2 multifunction LCD program box or OTA programmer is required for purchase). You can take advantage of the latest functions and upgrade your speed controller as soon as an update is released.

• Supports 48 degrees Boost and Turbo.

• When matching with XERUN 1/8 motor (G3 4268/4274), the maximum speed can be increased by 50%, easily win!

• Multiple functions: low voltage protection, thermal protection of ESC, motor and capacitor.

• The BEC power output can be modulated with a maximum output of 15A and adjustable voltage from 6V to 8.4V (in 0.1V increments) for use with servos and other devices that require different voltages.

• The built-in reverse connection protection circuit of the ESC prevents damage to the ESC due to polarity error. Perfect if you are distracted :-)

• The offline data logging function can read all the maximum data reached.

• The temperature and speed of ESC and motor can be read directly through the smartphone app by HW Link (requires OTA programmer - sold separately), which is convenient for the driver to analyze the operation of the system.

• The real-time data logging function: open this function by connecting the ESC with HW Link via OTA Programmer. It can check power, voltage, current, temperature, RPM and other data in real time, and get the working status of controller and motor.

Dimensions:

56.1mmx42.1mmx38.6mm

Weight:

122g with cables
