Kyosho Turbo Optima 1/10 4wd *LEGENDARY SERIES*

Long live the legend!

Updated with the latest technology.

The appearance of the Optima was a real revolution on the world stage. Its worthy successor, the Turbo Optima was launched in 1986 as the most powerful machine in the series.

In 1986, The Turbo Optima set new standards: Large diameter tires, large capacity shock absorbers, front and rear anti-roll bars and a Le Mans 240S motor.

The Turbo Optima then accommodated 8.4V batteries. Remastered in 2019, the Turbo Optima debuts as the 7th model in the vintage series.

Key Chassis components

The Turbo Optima has been redesigned to meet the demands of modern racing conditions and propulsion batteries, and share DNA with the Optima and Javelin.

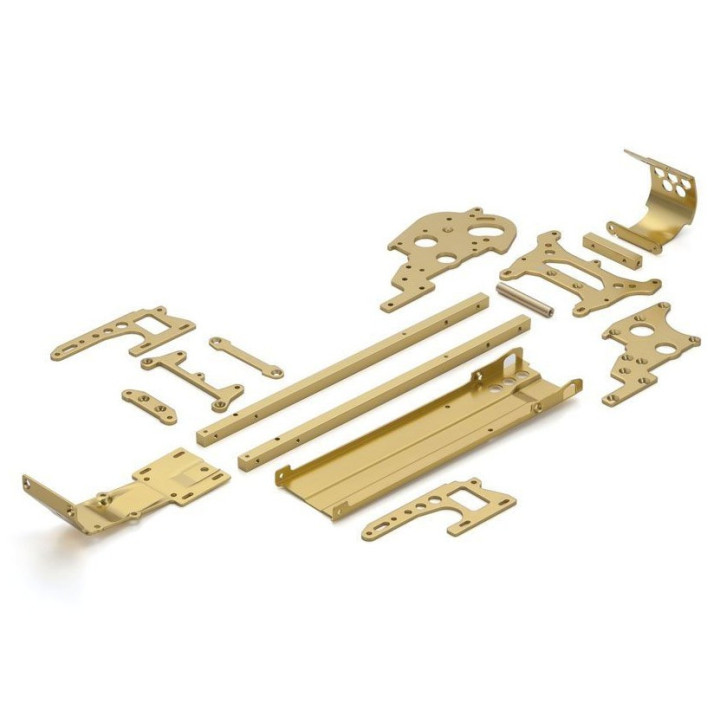

The new Turbo Optima is not just a reproduction of the original. It includes gold anodized parts which were optional improvements over the original.

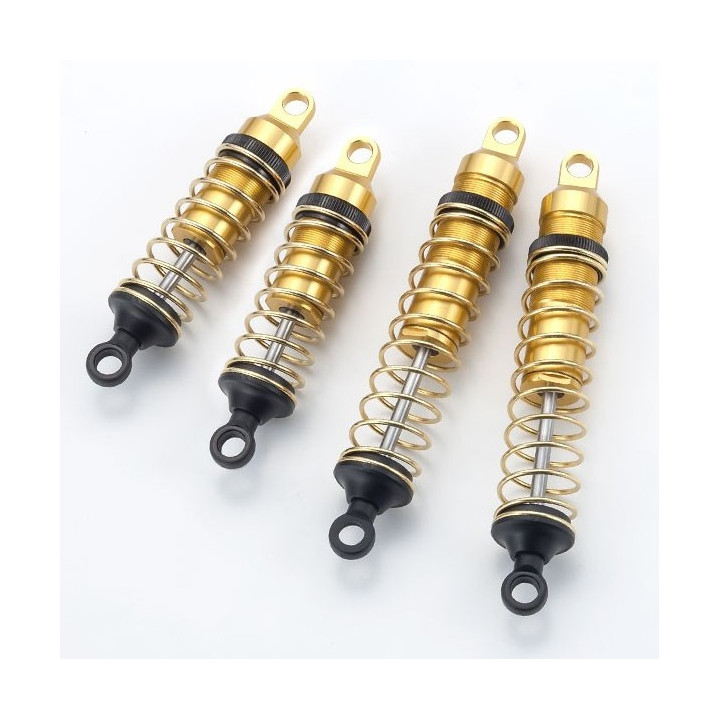

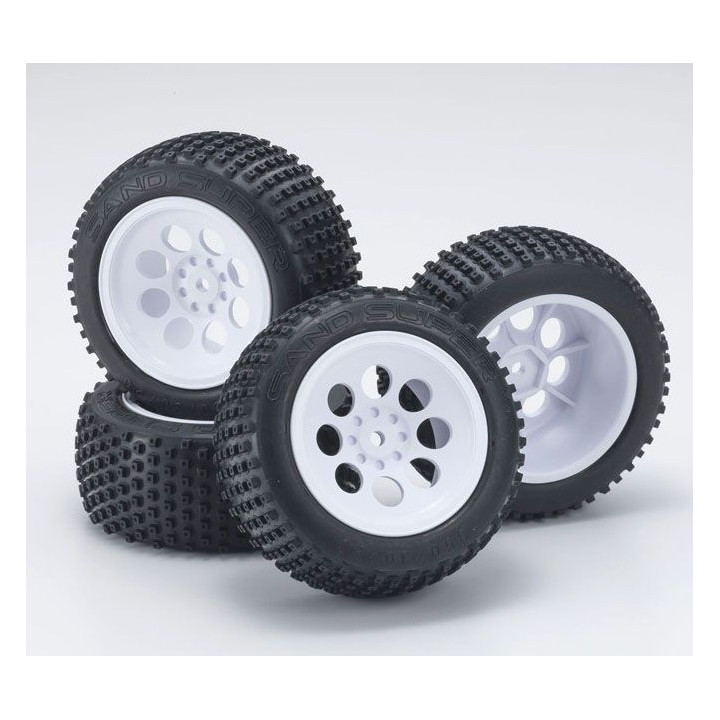

Gold shock absorbers with adjustable chassis ride height and new modern tires with large pins. While retaining its original look from 1986, the 2019 Turbo Optima is equipped with the latest electronic technology.

• While a faithful reproduction the original Turbo Optima, each key performance component has been revised for compatibility with modern power sources.

• 4WD belt driven. Pulley for chain is also included in the kit so purchase of an optional chain can change the drive system.

• Equipped with FRP radio plate that is compatible with major brand ESC’s (speed controllers).

• Three toe angle settings ( 0°, 1°, 2°) can be used by inserting resin bushes into the rear hub carrier.

• Modernized aluminum hexagon wheel hubs can be securely fixed with set screws.

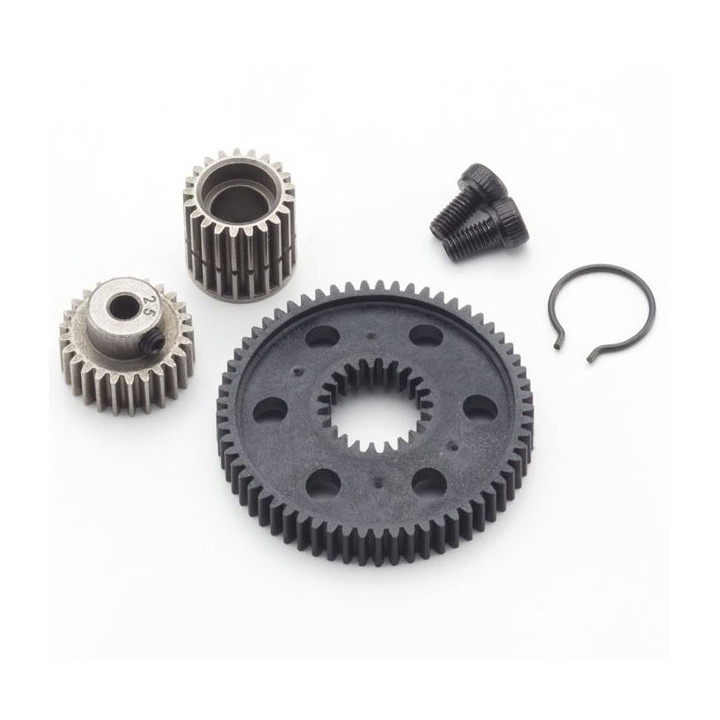

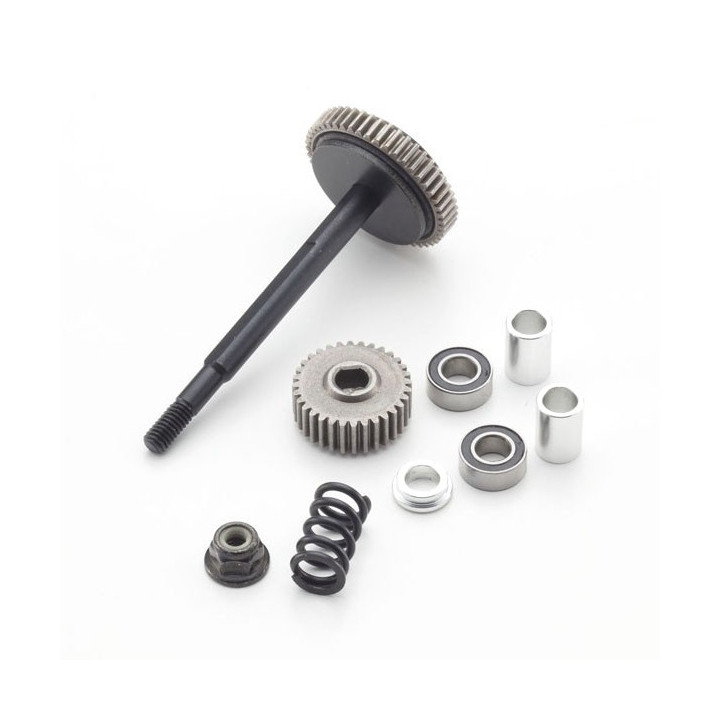

• Equipped with metal gears.

• Full ball bearing specifications (18 bearings).

• Includes separate helmet and polycarbonate body.

• Battery stays are compatible with various modern batteries and secured with hook and loop fasteners (battery strap with KYOSHO logo) for easy removal of battery.

• Hex screws used for assembly provide secure construction.

Technical datas

• Length  395mm

• Width    244mm

• Height 120mm

• Wheelbase  260mm

• Front tread  208mm

• Rear tread   208mm

• Weight     1,600g (approx.)

• Tires (FR/RR)  φ82×36mm

• Motor       Class 540

• Gear ratio   9.24 : 1

Kit content

• Car kit to build

• Stickers

• Wheel wrench

• Cross wrench

• Shock tool

• Shock oil

• Grease

Required for operation

• 2 channel R/C system (servo x 1, ESC x 1)

• 540 motor (27T-20T recommended)

• Brushless motor specifications: No.37031 Le Mans 240S Brushless motor 19.5T, No. 37051 Le Mans 240S ESC (60A/MAX 13.5 turn)

• Brushed motor specifications: No.37021 Le Mans brushed motor 30T, No. 82245 KA060-91W ESC

• Battery (7.2V Nickel Hydrogen battery or 7.4V Li-Po battery)

• Battery charger (DC 12V regulated power supply)

• Paint tools for body painting

• Batteries for transmitter

• Tools (1.5/2.0/3.0mm hex wrench screwdriver, needle nose pliers, curved scissors, cutter. When replacing servo horn Phillips screwdriver may be required)
