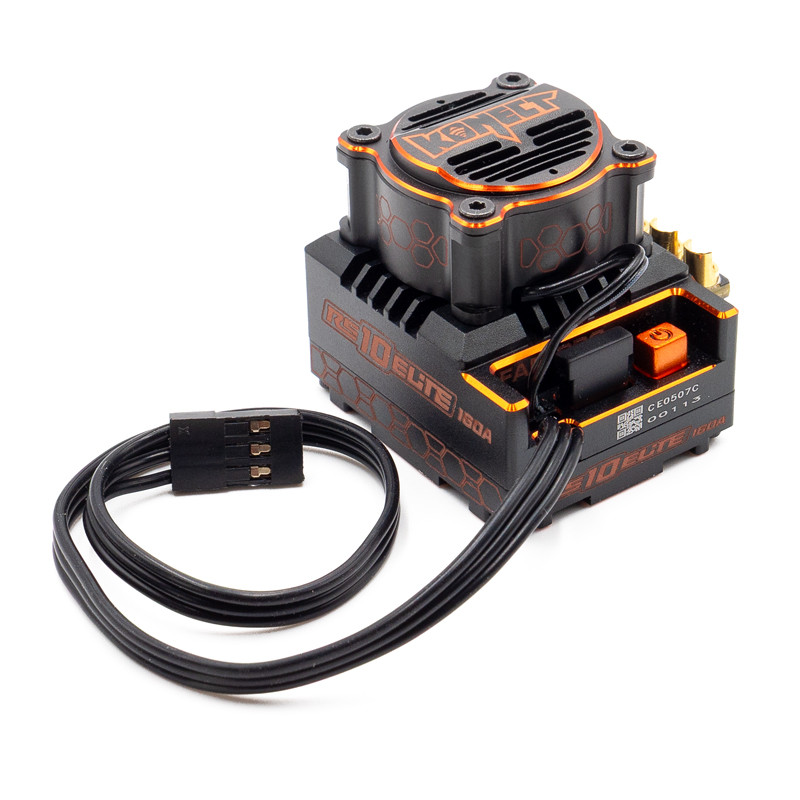

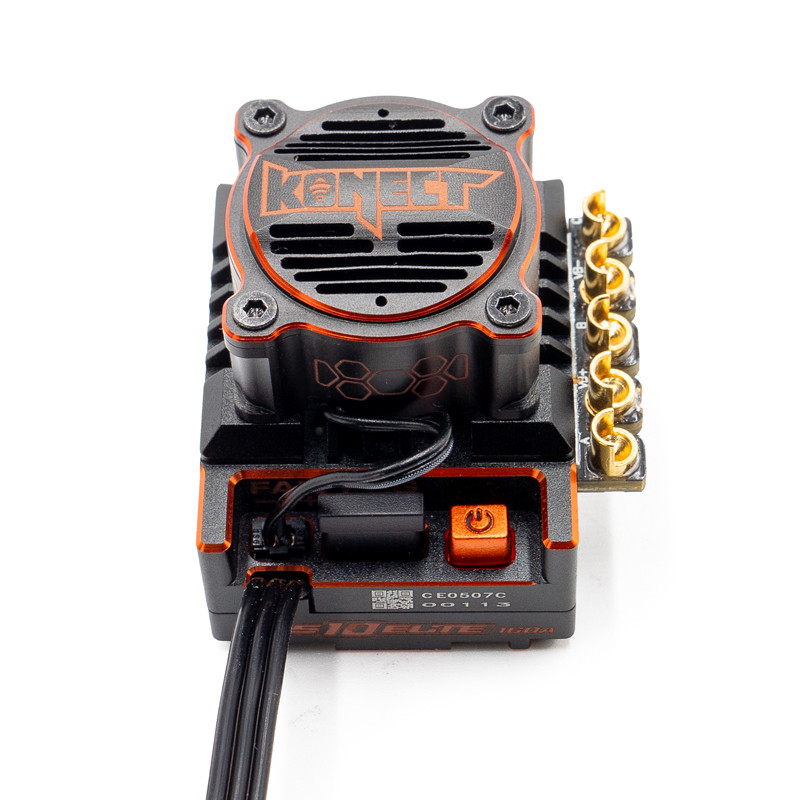

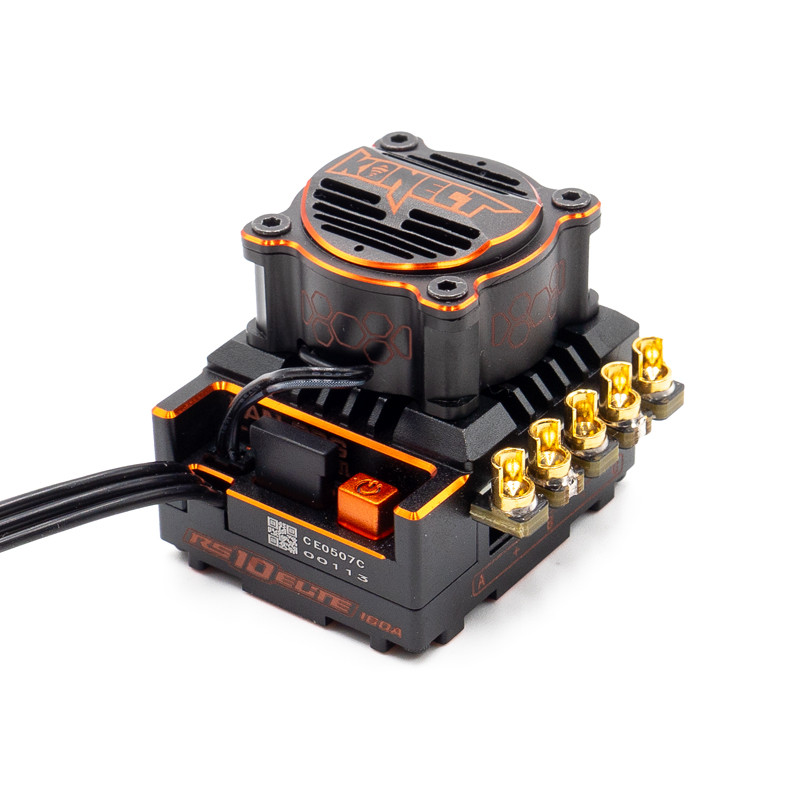

The KN-RS10 ELITE is a high-end brushless ESC for 1/10th off-road and on-road competition models.

To make it easy to learn, 3 setting modes are predefined: Custom Blinky (for STOCK competitions requiring a no-timing mode), 1/10 Off-Road (buggy / truggy / Monster 1/10) and 1/10 On-Road (touring, F1, Pancar...).

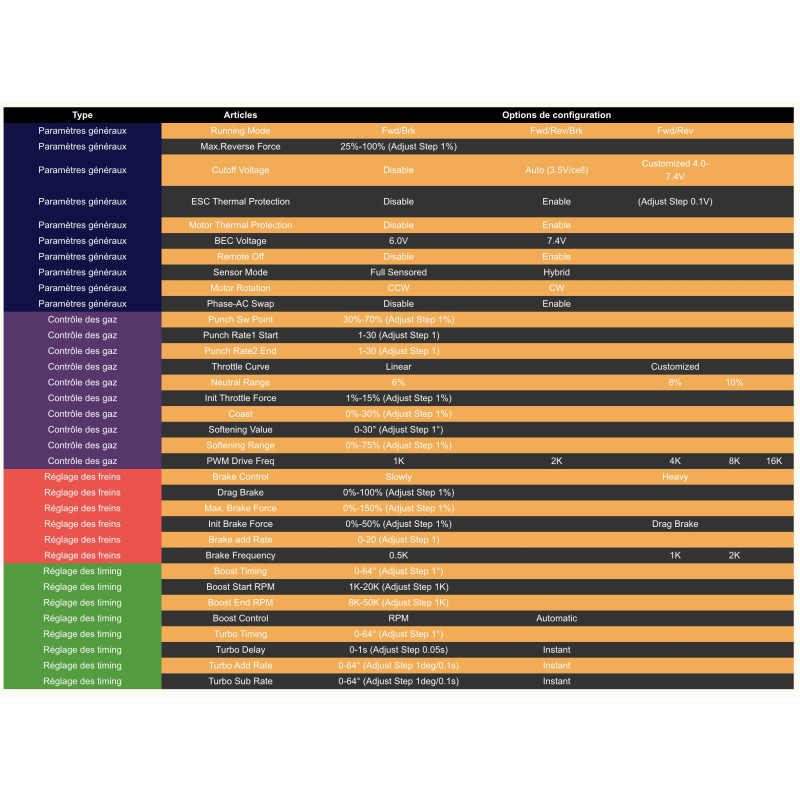

The ESC features 36 adjustable parameters for customizing and adapting motorization to your riding style. Parameter settings can be imported and exported, facilitating the exchange of settings between drivers.

Support for a 64-degree super boost and turbo timing for power-hungry categories such as 1/10 touring.

Numerous protection functions: low-voltage protection, ESC protection and motor overheating protection.

A super BEC is integrated, delivering a DC current of up to 6A (peak up to 8A) and a voltage of between 6 V and 7.4 V.  This voltage can be adjusted to suit all servos on the market.

With the data logging function, you can record operational value data (e.g. maximum ESC and motor temperature and maximum motor speed) and read them out after a run via the LCD control box.

An intelligent ESC shutdown function can be activated to remotely switch off the ESC with its transmitter.

Features:

• Current: 160 A continuous, peak 1100 A
• Motor compatibility: Brushless with sensor / without sensor
• Applications : 1/10 cars: buggy 4x2, 4x4, touring, track
• Recommended battery: LiPo 2 S
• Size: 38 × 37.8 × 36 mm
• Weight: approx. 60 g
