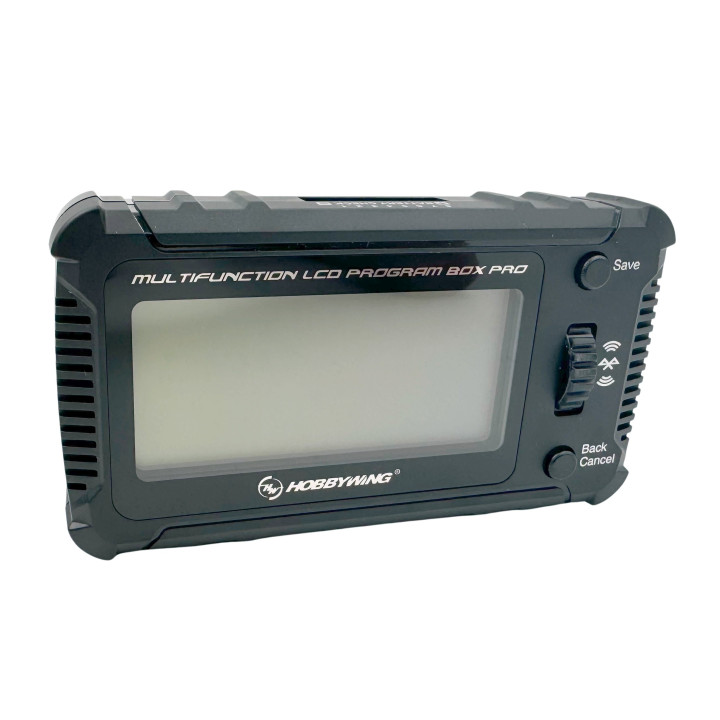

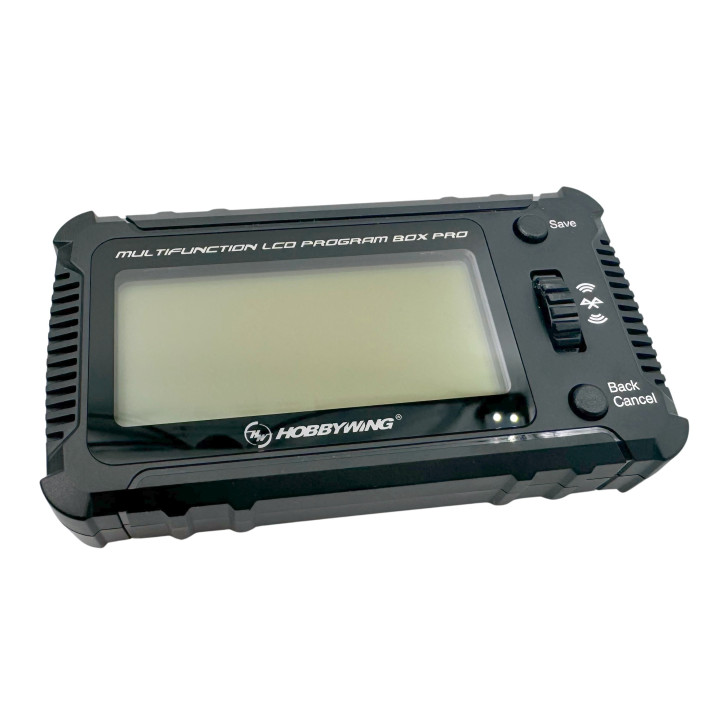

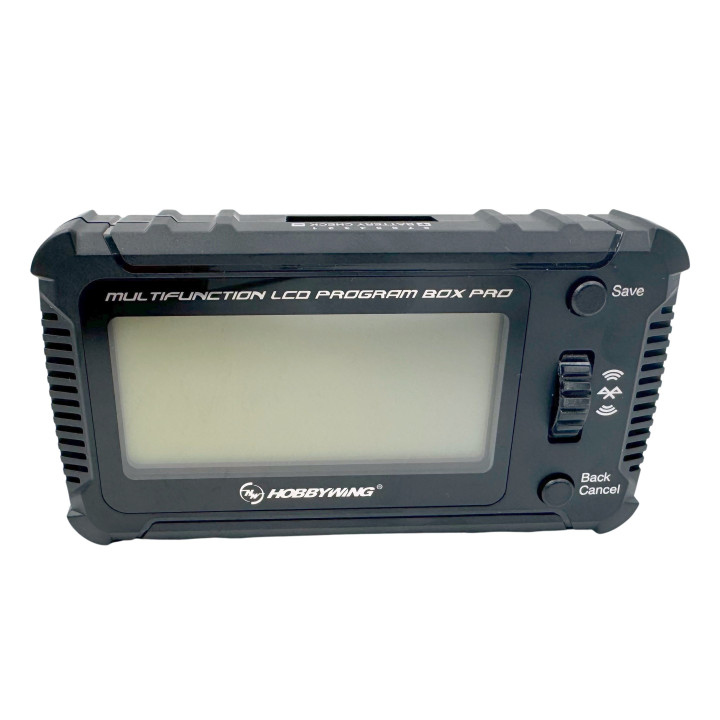

The essential programming box for setting up all your Hobbywing speed controllers!

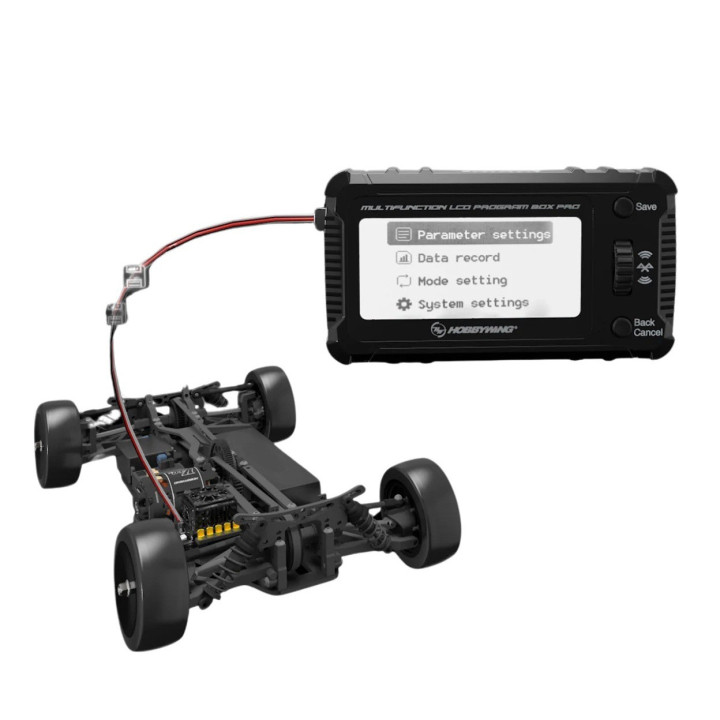

Modify all your ESC settings directly by changing parameters via the integrated LCD screen, or via the iOS or Android app and your smartphone.

This device also lets you take advantage of all your hardware updates via PC or smartphone.

What's more, it's compact, portable and highly applicable for use at the track.

• Connect the ESC to a computer using a USB adapter (included). Use the USB Link application software on the computer to update ESC firmware and adjust settings.

• Bluetooth™ OTA module: use the mobile APP to set ESC parameters, update firmware and read data.

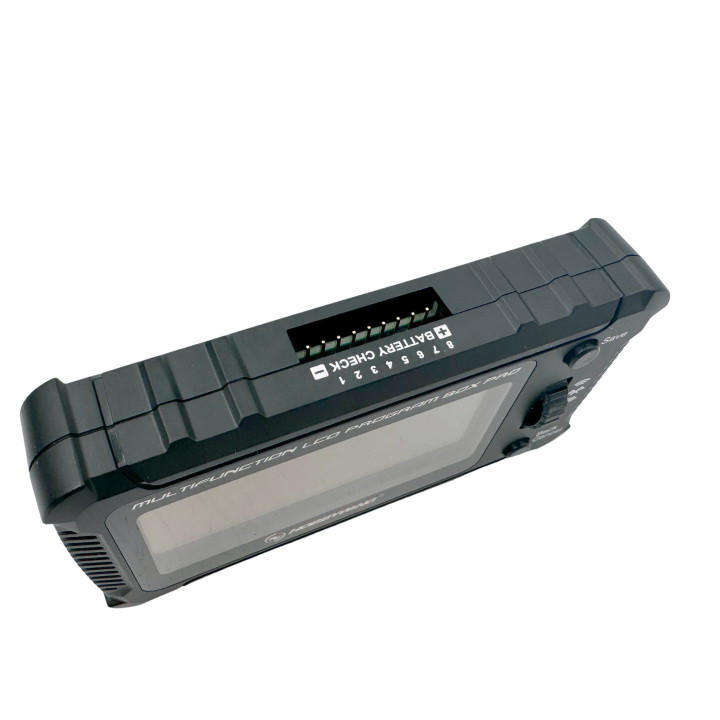

• Integrated battery tester for detecting overall lithium battery voltage and individual cell voltage.

• The scope here can also be understood as all escs that the former G2 LCD programming box and Bluetooth™ OTA module can support.

• Languages included: English, Chinese, Japanese.

• Size and weight: 105.6x59x24.4mm（LxWxH) / 85g

• Input voltage: 5-12.6V

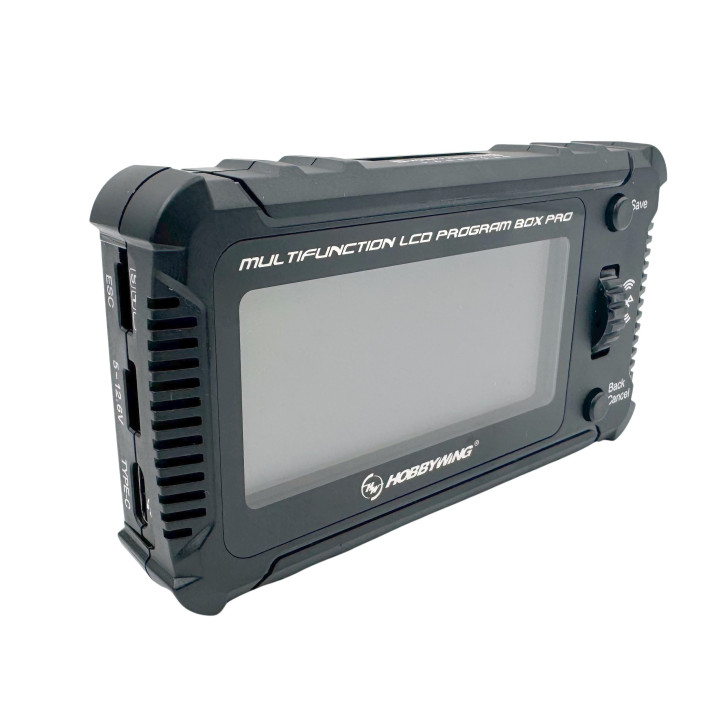

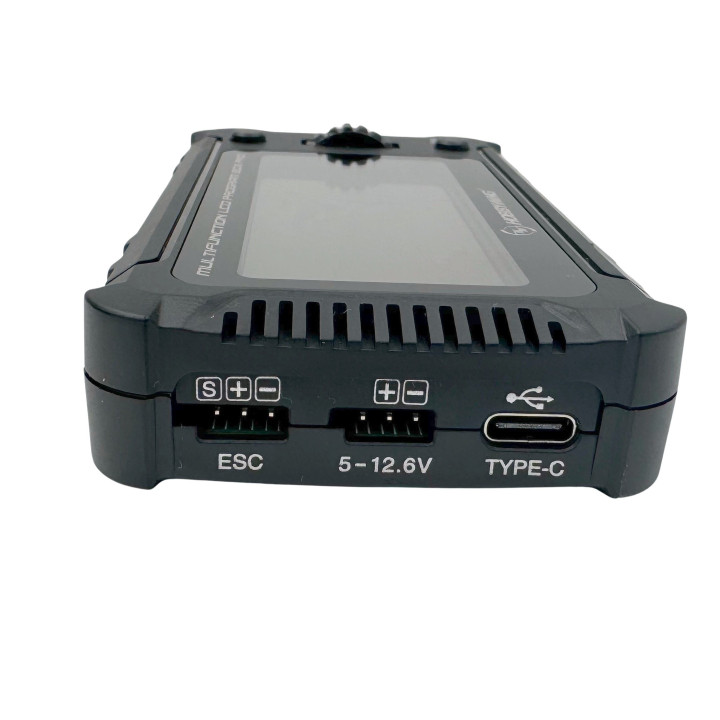

• Interface: USB TYPE-C, ESC (Futaba plug), power interface (Futaba plug).

This multifunction LCD program box is applicable for the following Hobbywing products:

Platinum series of brushless aircraft ESCs, XeRun (140 SCT, G2S, G3, PRO) & EzRun MAX (V2.0 and above) series, Platinum and SEAKING PRO series. This device also works with some QUICRUN series ESCs.

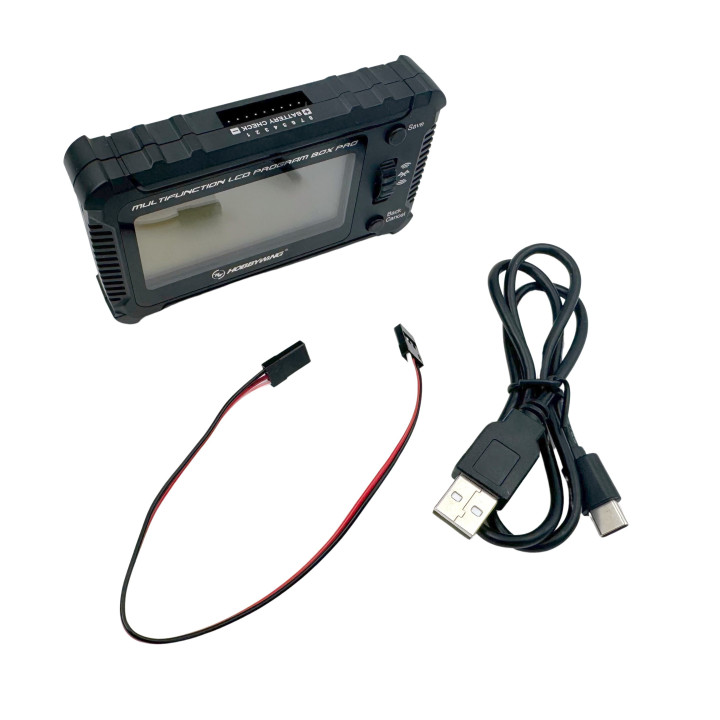

Includes:

• programming card

• USB-C cable

• Futaba male/male extension cable for ESC connection

• Instruction manual LCD program box PRO G3.
