Tworkz optional part for Kyosho Inferno MP11 and MP11e buggy.

Custom designed for the Kyosho MP11 and MP11e.

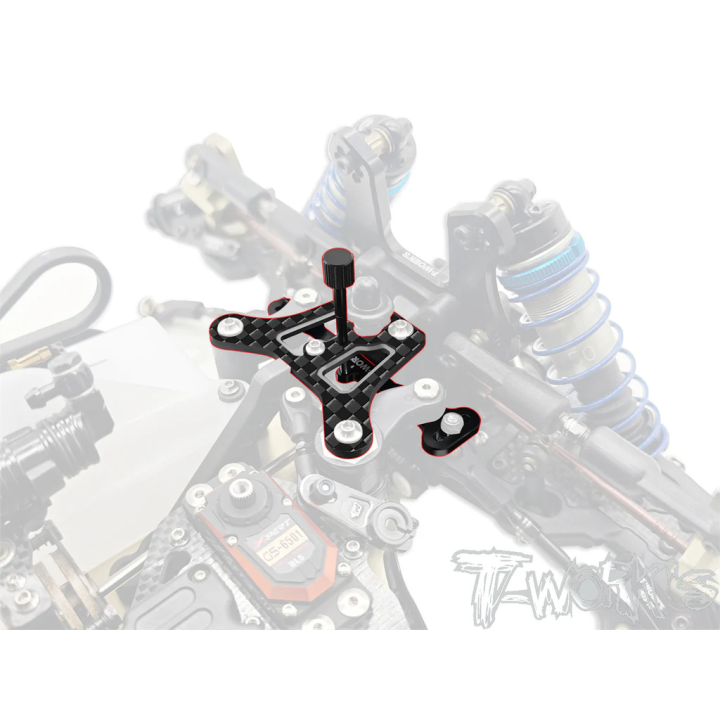

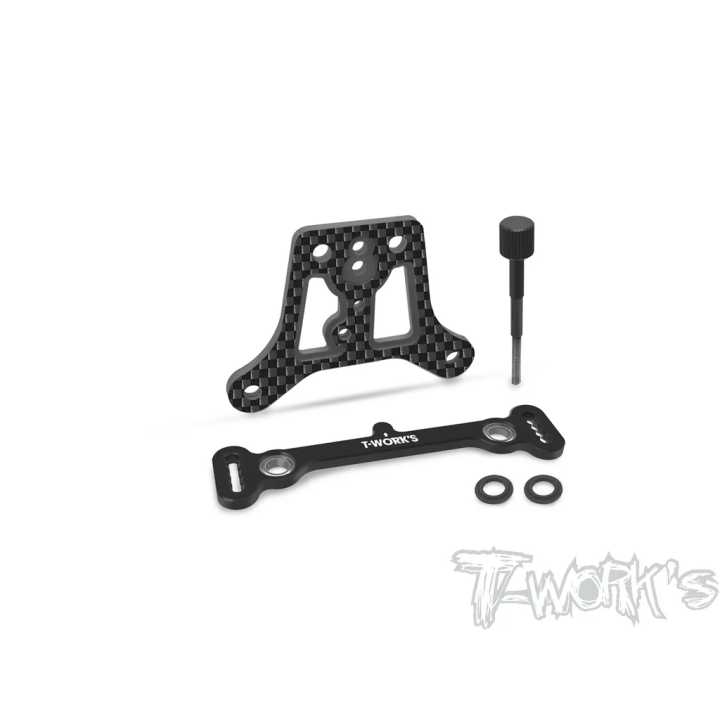

This kit includes a bearing-supported aluminum steering bar, a front carbon fiber servo saver plate and a central positioning tool, allowing you to improve in one go the steering precision and the stability of the front end. No complex modifications are required; the kit is ready to install and use immediately.

Aluminum steering bar

Made from 7075-T6 aluminum with black anodizing and laser engraving, it blends aesthetics and strength. Mounted on bearings, with geometry identical to the original IF718 for a trouble-free replacement. Improves the rigidity and durability of the steering.

Upper carbon fiber plate

Made from high-quality carbon fiber, light yet strong. Reduces vehicle weight and improves driving precision; impact- and deformation-resistant, it stabilizes the front structure for greater precision and steering control. Directly replaces the original IF729 plate without further modifications, easy to install.

Central positioning tool

Designed for a precise adjustment of the front wheel toe-in of your buggy. After removing the servo's steering horn, insert the tool through the central holes of the servo saver plate and the steering bar for positioning and securing. Thereby, you can now precisely adjust the front wheel toe-in with confidence that you are centered. Remove it after adjustment, thereby quickly optimizing steering accuracy.

Installation

1. Install the Ackermann steering bar with the arrow pointing toward the rear of the vehicle.

2. Assemble onto the left and right steering servo saver arms. Install the provided washers beneath the plate on both sides, the flat side of the washers facing the chassis, then secure them with nuts (do not overtighten).

3. Mount the steering assembly to the steering posts.

4. Assemble the body mounting bracket with the servo saver plate in the correct orientation, then install the assembly on the car.
