The ultimate conversion kit for your MP10 and MP10e! Compatible with all versions, this is the front drivetrain used by Reno Savoya and the Kyosho International team with great success at the 2024 European and World Championships!

The main advantage of this conversion kit is the added angle on the Kingpin (KPI), meaning the angle between the wheel axis and the spindle carrier pivot axis is no longer equal to 90 degrees.

This kit gives your buggy a smoother steering, but also more steering at corner exit. As a result, the car performs much better and is easier to steer on high-grip or high-speed tracks.

The mounting system has been redesigned compared to previous versions, to completely eliminate play and its incrementation over time.

It is now possible to adjust the wheelbase in the wishbone, as well as the height of the spindle carrier in the C-hub.

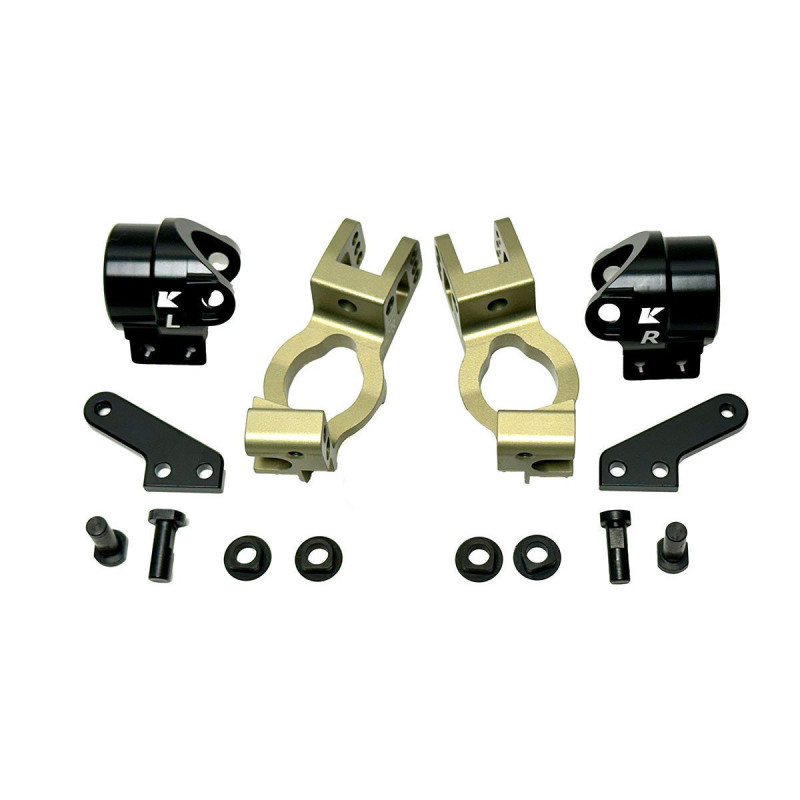

The kit comes complete with the necessary mounting hardware:

  • black-anodized aluminum spindle carriers with kingpin pivot angle (KPI) (right and left)
  • caster blocks with fixed 18-degree (right and left)
  • black-anodized aluminum spindle plates (right and left)
  • kingpin axles
  • mounting washers and spacers

(*also compatible with all MP9 versions)

  • Brand
  • Reference
    RSRC-23

search
Q: Hi,ncan you send me a basic easy to drive setup for the KPI-C Hub?nMany thanksnhello, Markus

Markus Petelinc on Apr 17, 2025 11:01

A: HellornWe suggest using the middle hole on the Chub, knuckle down and 2mm in front of the Chub in the arm.rnThank you!

Admin on Apr 17, 2025 11:03 check_circle_outline Like 0 Dislike 0
