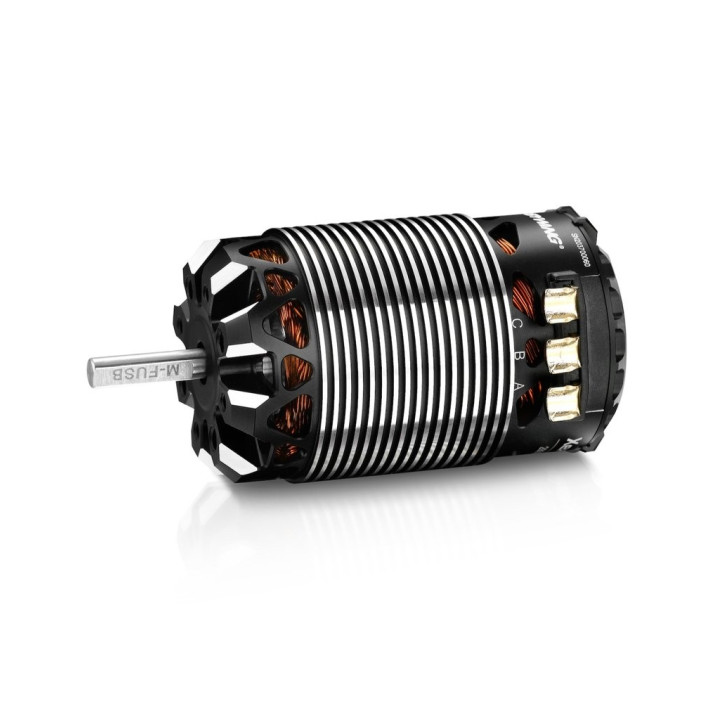

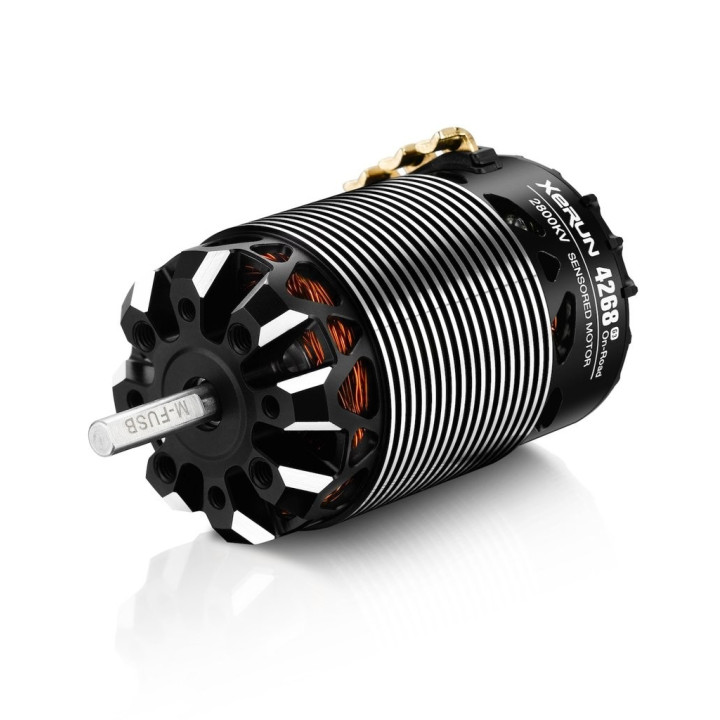

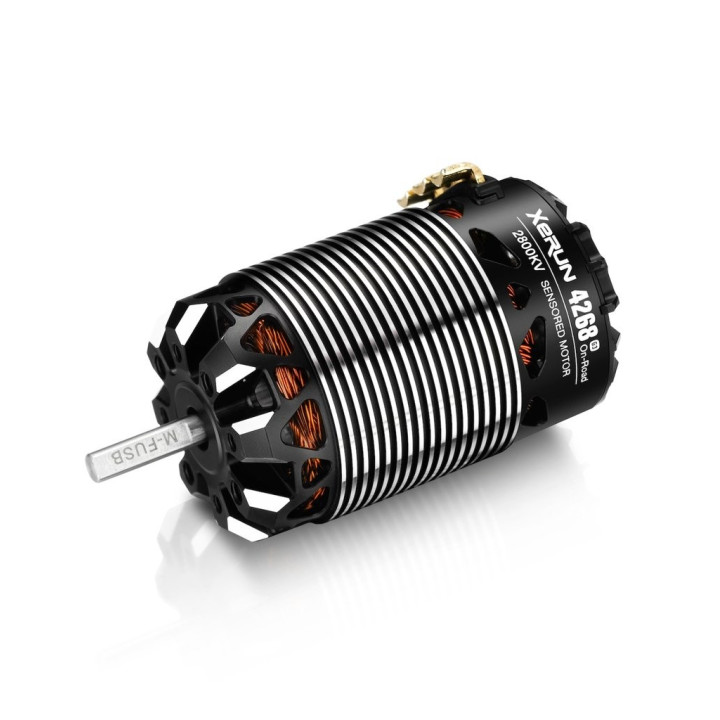

1/8 brushless motor for off-road buggies

Compared with XERUN 4268/4274 G2, the motor structure is greatly optimized, the efficiency is improved by 6% or more, which effectively reduces the increase in motor temperature, for even more performance!

On-road cartrige with milling in order to reduce even more the running temperature!

• Technology with Turbo Timing
• Full Sensored Mode (when used with XR8 SCT, XR8 plus or XR8 Pro speed controllers)

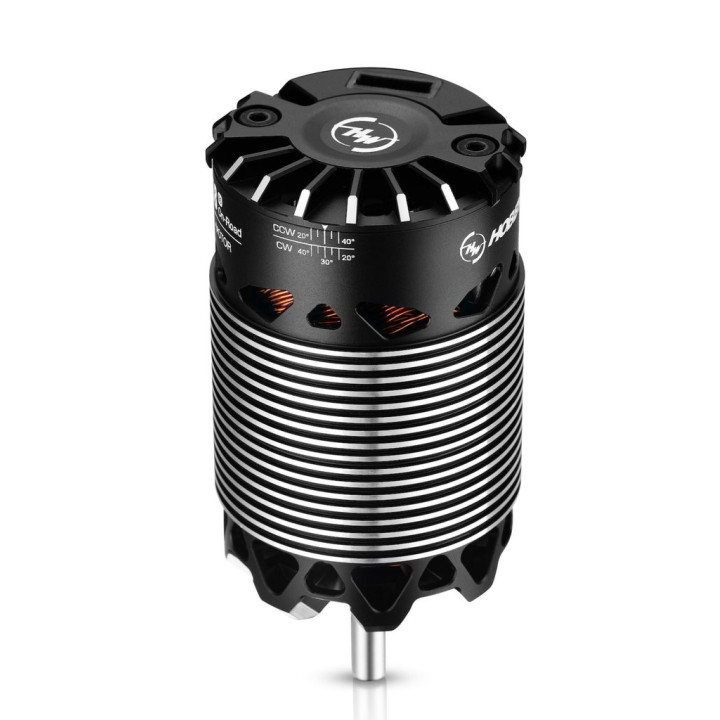

• Mechanical timing (CW-CCW) adjustable outside the motor (+ or - 20/40 degrees)
• Improved sensor positioning system, with patented "Hall Sensor" technology: independent high speed and high precision encoder that will always produce a pure and precise rotor position signal, which will effectively isolate any external interference, for even more precision and sensation.
• 4 pole rotor with 8 magnets in "Staggered Pole" mode, a patented Hobbywing technology
• A new design that guarantees good heat dissipation and optimum protection against dust
• The use of double-insulated windings (240 ° C R-rated), NMB bearings from Japan and the high-intensity adhesive (340 ° C) ensures users outstanding performance and exceptional durability.

Characteristics:

• 2800KV for off-road use
• Weight: 300g
• Use: 2S-4S
• Resistance. (Ω): 0.0035
• Diameter: 42mm
• Length: 68mm
