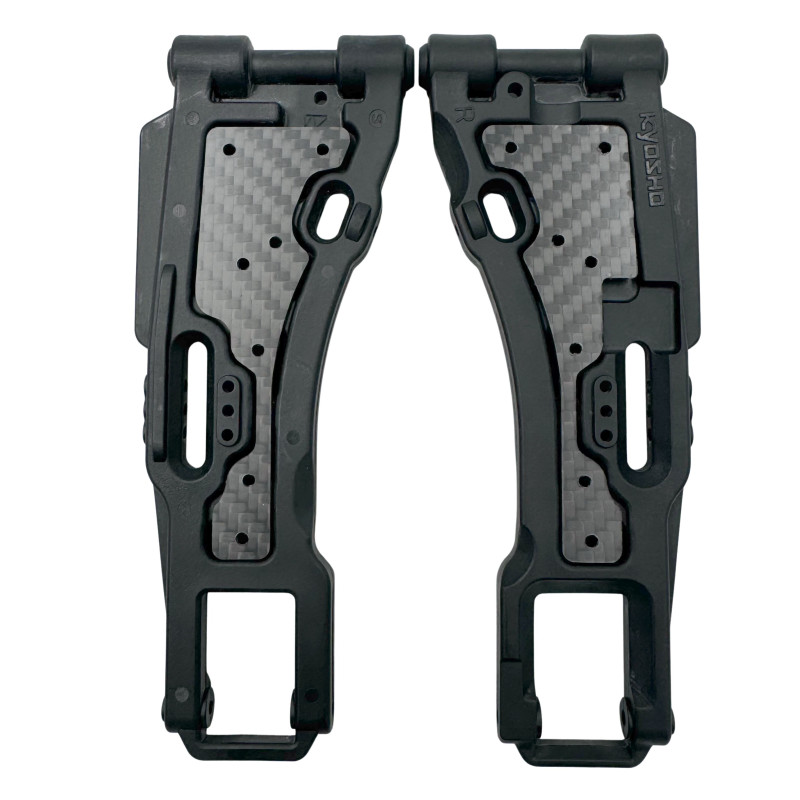

Lower wishbone stiffeners for Kyosho MP10T and MP10Te, compatible with all versions.

Gives more rigidity to your buggy's lower arms for greater precision, but also reinforces them to delay breakage.

Also, no more “banana” effect of your arm bending over time.

In fact, we've designed a "sandwich panel" system that leaves the internal reinforcements of the suspension untouched, with a 1mm plate on top and a 1mm plate underneath.

Supplied with all the necessary mounting hardware (M2.5 screws and nuts), all you have to do is affix the plates to the arm and drill it using a 2.5mm drill bit.

Mounting is secure and remains rigid for a long time, unlike competing models which crack or the screws loosen and gradually lose their effectiveness.

Assembly:

• Place the carbon plate on the arm, respecting the direction and position (different top and bottom plates).
• Drill the arm with a 2.5mm drill bit.
• Remove plastic chips.
• Insert screws into top plate, followed by plastic washers.
• Place the plate on the wishbone, passing all the screws through the drilled holes.
• Slide the remaining washers onto the screws protruding from the underside of the arm.
• Fit the 2nd plate onto the screws.
• Screw in all nuts only for a few turns.
• Fully tighten the nuts one by one.

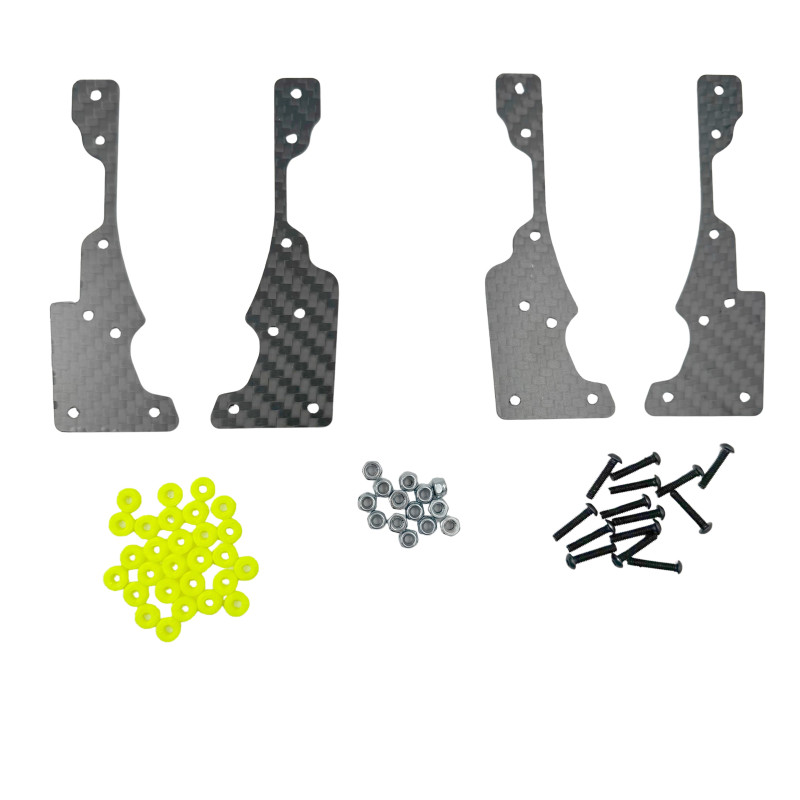

Contents:

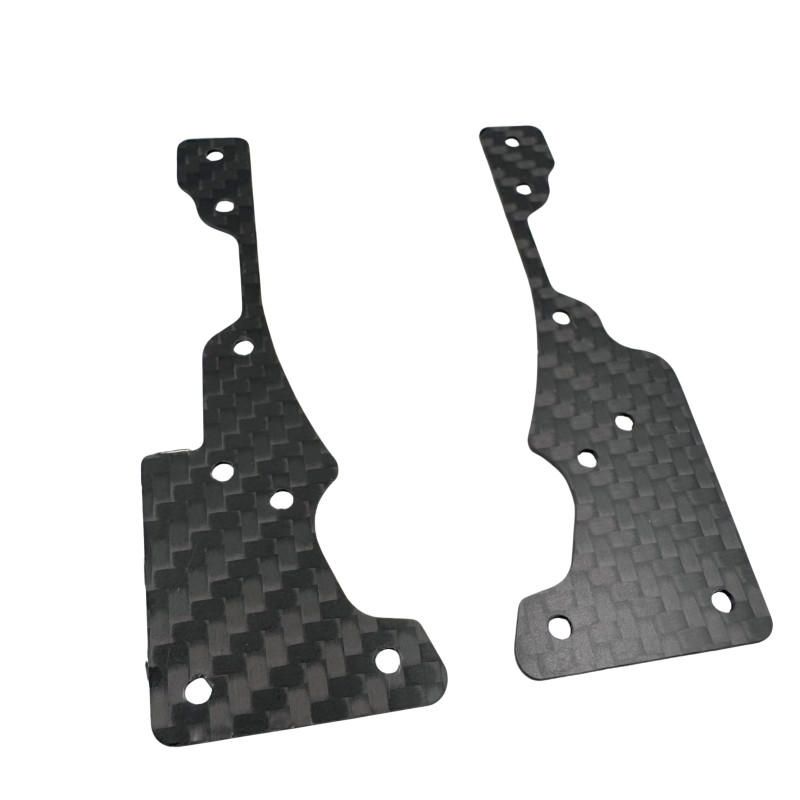

• 4x 1mm carbon plates to fit a pair of wishbones.
• 10x M2.5 screws
• 10x M2.5 nuts
• 20x 3D-printed washers for sandwich mounting
