Konect 1/10 Combo: RS10 ELITE ESC + K1 G2R Motor
Complete combo featuring the RS10 ELITE 160A ESC and the K1 ELITE G2R 1/10th Konect motor.
Available in MODIFIED versions: 5.0T, 5.5T, 6.5T, 7.5T, 8.5T, 10.5T
or STOCK versions: 13.5T, 17.5T
Complete set with speed controller and motor.
Compatible with the LINK programming box for precise adjustment of the settings on the RS10 ELITE speed controller, which is both compact and powerful.
The Konect K1 ELITE G2R 1/10-scale motor is a high-performance brushless motor designed specifically for 1/10-scale RC car racing. Developed and designed in France, this motor combines advanced technology and reliability, offering RC hobbyists an exceptional driving experience.
Designed to deliver maximum torque and rotation speed, the K1 ELITE G2R motor is equipped with a coated stator that improves heat dissipation and provides better corrosion resistance over time. Its specific, ventilated housing machined from CNC T6 aluminum ensures optimal air circulation, thereby contributing to constant performance even during intensive race sessions. The high-purity copper windings maximize conductivity, guaranteeing increased energy efficiency and immediate responsiveness to commands.
The K1 ELITE G2R motor features an adjustable mechanical timing, allowing drivers to precisely tailor motor performance to their specific needs (in addition to the ESC settings). This motor is compatible with all 1/10 competition vehicles thanks to its standardized format.
Available in different turns (T) variants, the K1 ELITE G2R meets the varied demands of competitions, whether for modified or stock (standard) classes. Each model is designed to offer an optimal balance between power, torque and efficiency, allowing drivers to choose the motor best suited to their driving style and the track specifics.
Pack content:
- Speedo (speed controller)
- Motor to choose from the dropdown menu
- Cables
- Capacitor

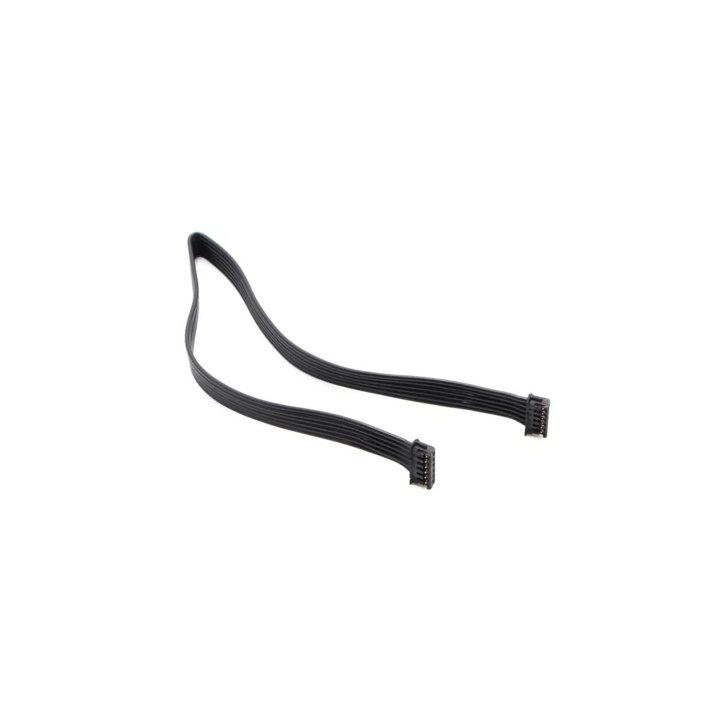

- Sensor cable
- Konect Stickers

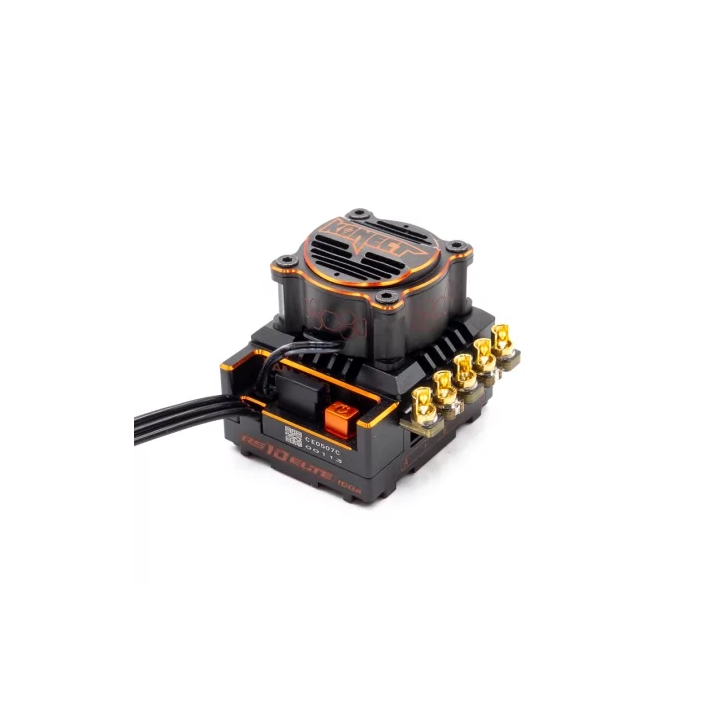

Speed controller
| Current | 160 Amp |
|---|---|
| Motor type | Brushless with our without sensor |
| Peak current | 1100 Amp |
| BEC voltage | 6V/7,4V , current 6A/8A Max |
| LiPo / NiMH | Lipo 2S |
| Program mode | LINK PROGRAM BOX |
| Application | 1/10 racing cars, touring or off-road |
| Dimensions | 38 x 37.8 x 36mm |
| Weight | 60 g |
Motor
| Type | Spec |
|---|---|
| Motor diameter | 36 mm |
| Motor length | 51.7 mm |
| Shaft diameter | 3.175 mm |
| Pole number | 2 |
| Li-Po | 1-2S |
| Timing | 20°-60° |
| Rotor (mm) | 12.5x5mm |
