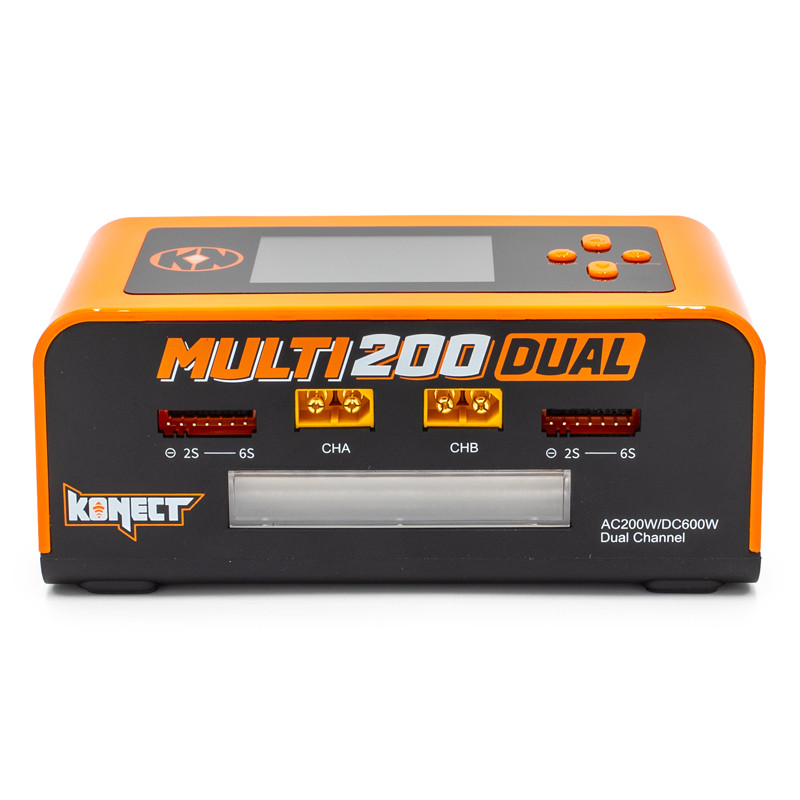

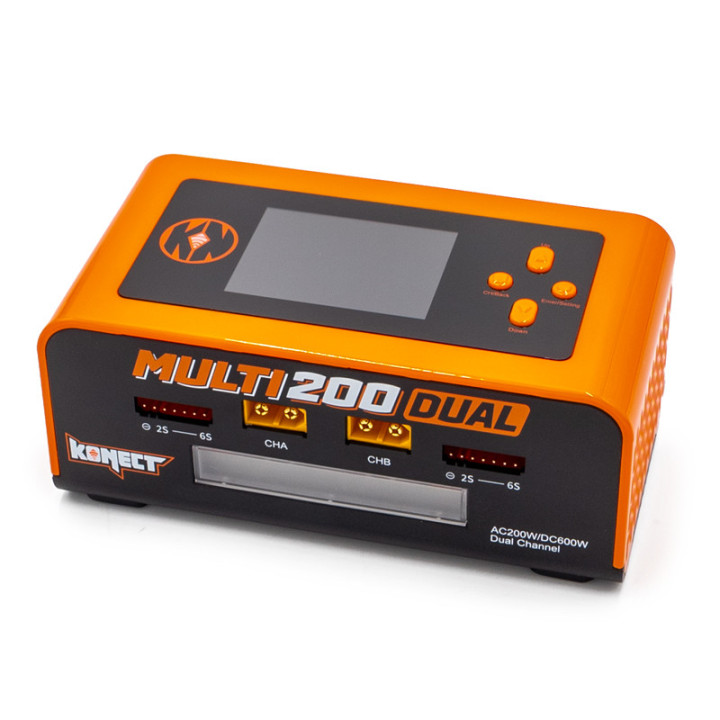

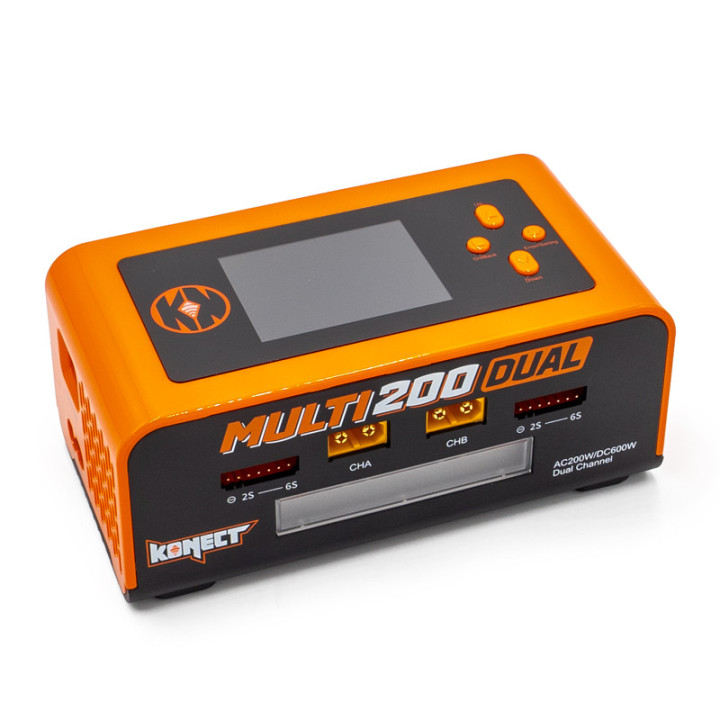

The Konect dual battery charger charges and discharges on 2 outputs.

The DC power supply (7-30V) allows for a maximum charge of 300W on a single port, and the AC power supply (100-240V) allows for intelligent distribution of the total power.

The total power is 200W (2 channels), the maximum charging current is 15A, the charging current is adjustable, and the use and operation are simple.

7 modes of product operation include charging, discharging, balancing, storing, ExtDischarging, SyncCharging, digital powering.

During the process of charging your battery, the total voltage of the current job, charge/discharge current, charge time and other information can be displayed in real time through the display screen.

It is also possible to know the internal resistance of your battery and the temperature, which is convenient for users to understand the battery performance and charge status.

It is small and convenient to store and carry that you can take it for weekly errands or trips abroad.

The design of heat dissipation can effectively ensure the continuous, stable and reliable operation of the product. Suitable for all radio-controlled car / FPV / Aircraft / Heli / Drone / UAV batteries.

Summary:

• Smart Balance AC/DC dual channel charger with European plug

• Small, lightweight, portable design with wide-view color display.

• High power charging, capable of 15 amp maximum charge rate for one channel, 100V-240V worldwide voltage versatility, AC 200 Watts, DC 600 Watts.

• External discharge function.

• Synchronous output, 2-in-1 fast charging.

• Built-in DC power source for various devices (soldering iron, tyre warmers etc.) from 5 to 29V.

• Controlled heat dissipation system.

• Temperature compensation function.

• Advanced safety features, UL94-V0 flame retardant grade.

• Short circuit, overcurrent, overload and overvoltage protection.

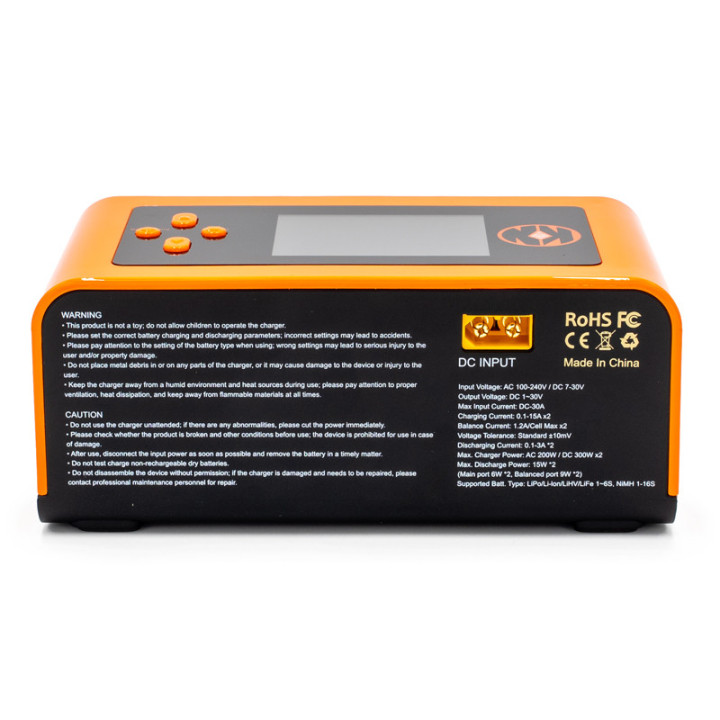

Features:

• Dimensions: 145x76x62mm

• Net weight: 530g

• Input voltage : AC100-240V ; DC7-30V

• Output voltage: DC 1~30V

• Max input current: MAX INPUT CURRENT: DC 30A

• Maximum discharge power: 15W*2 (main port 6W*2, balance port 9W*2)

• Maximum load power: AC 200W; DC 300W*2

• Charging current: 0.1-15A*2

• Discharge current: 0.1~3A*2

• Cell balancing: 1 to 6s

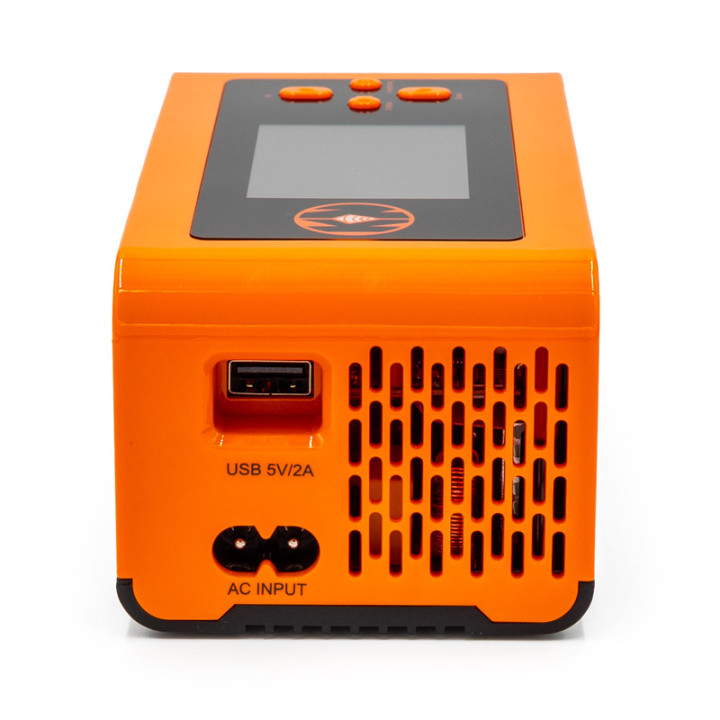

• USB output: 5V/2.4A

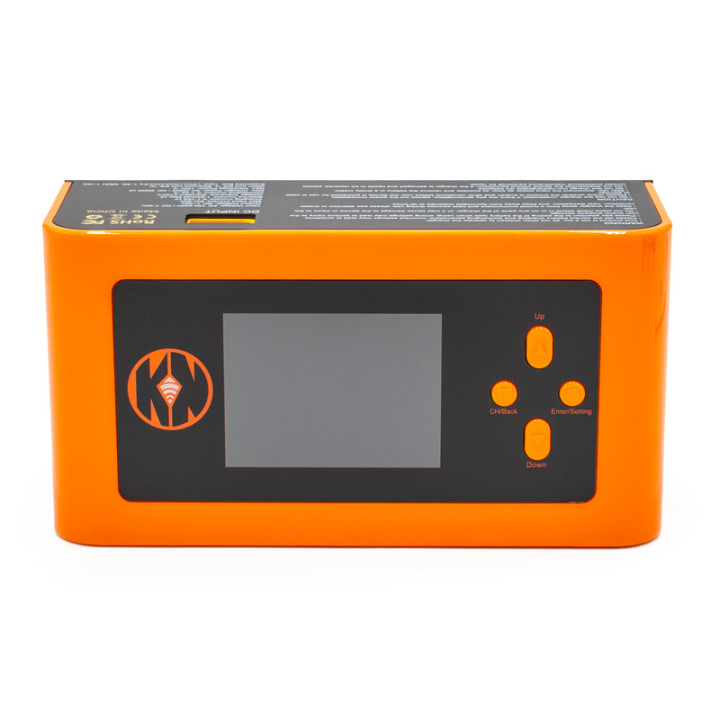

• Display type: 2.4 inch IPS LCD Display

• Supported battery chemistry: LiPo/LIHV/LiFe batteries from 1 to 6S; NiMH/Cd from 1 to 16S

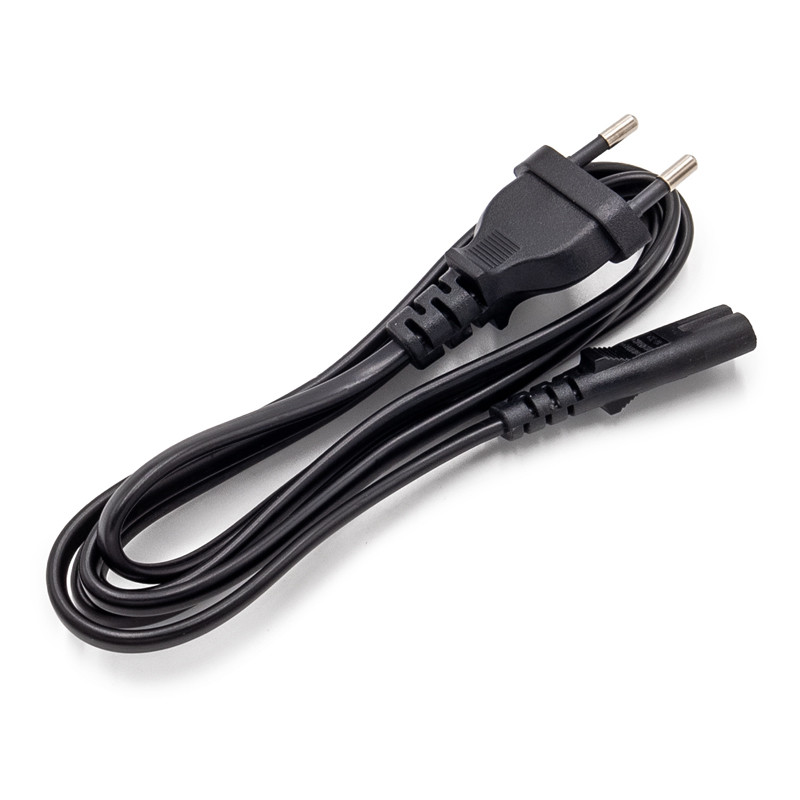

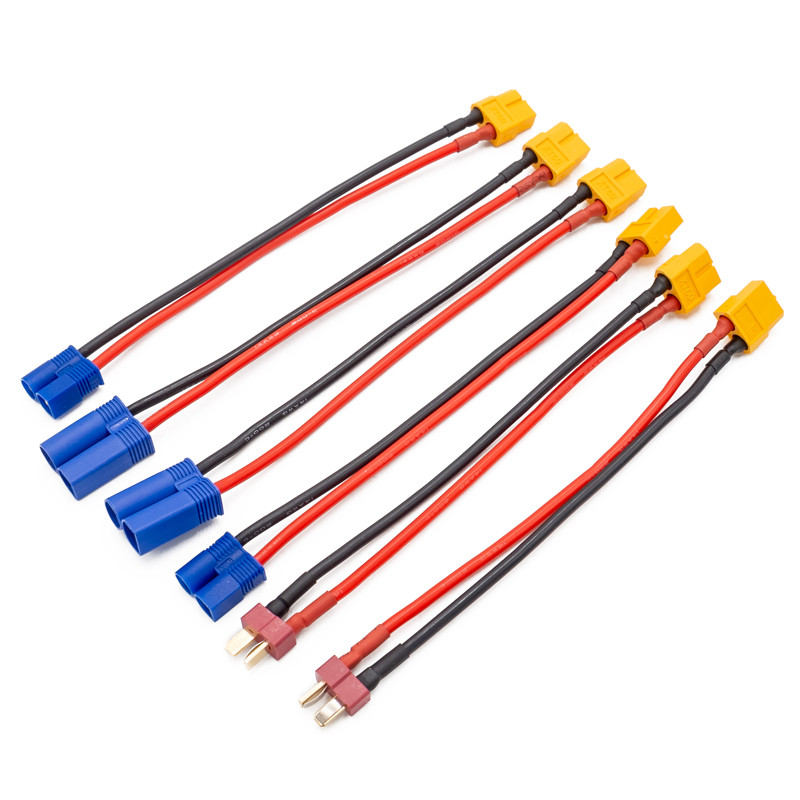

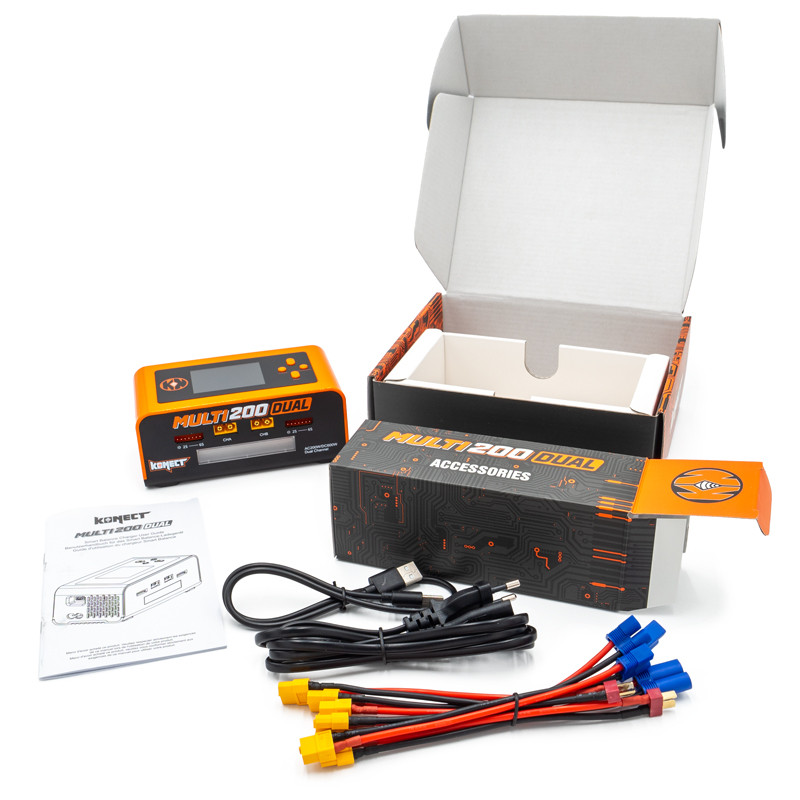

• Accessories included : AC input cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
