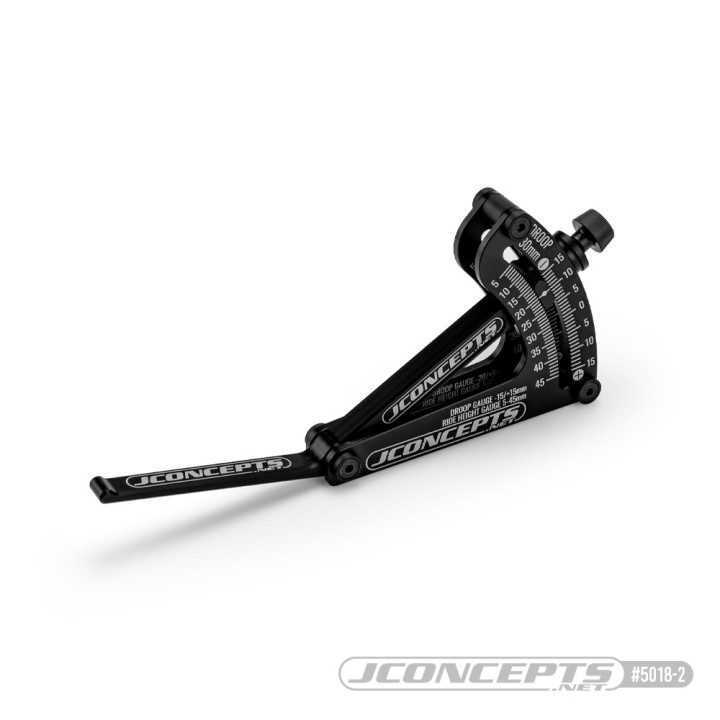

JConcepts introduces a new measuring tool for radio-controlled car adjustments suitable for multiple scales.

The laser-engraved adjustments allow easy reading of chassis height and travel for precise tuning.

The tool also measures suspension travel (droop), and the gauge's side plates are marked on both sides according to the height blocks used by the driver at the time of setup.

For example, if the driver is adjusting the settings on a 1/8 buggy, he uses the 36 mm block under the car. The driver confirms that the gauge plates are set to the 36 block height, then measures the axle heights accordingly.

In ride height setting mode, simply slide the tool under the car chassis and check the measurement easily using the engravings.

The floating nature of the tool is ideal for quick and accurate configuration checks. For other methods, the floating gauge is also equipped with a knob for tightening or locking a certain height. Chassis ride height can be measured from 5 to 45mm for many vehicles and ladders, while travel can be measured from -20 to +9mm.

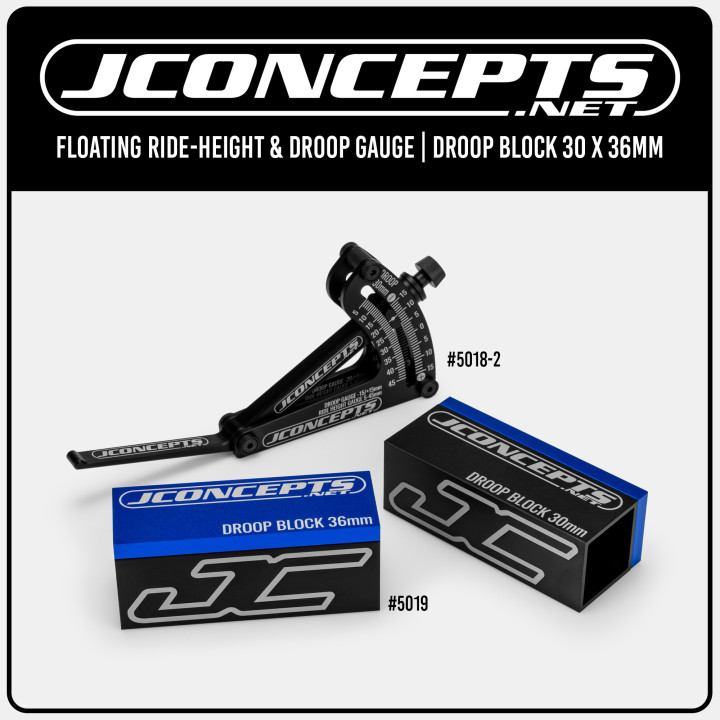

Pair the JConcepts gauge with #5019 droop blocks for the best travel adjustment process.

Features:

• Aluminum construction, versatile and ultra-elegant design
• Chassis height adjustments from 5 to 45 mm
• Droop measurements from -20 to +9mm
• Reversible plates for 30 and 36 mm tilt blocks
• Operates as a free-floating gauge or locked setting with side knob
• Durable color treatment for identification
• Engraved logos for size and brand
