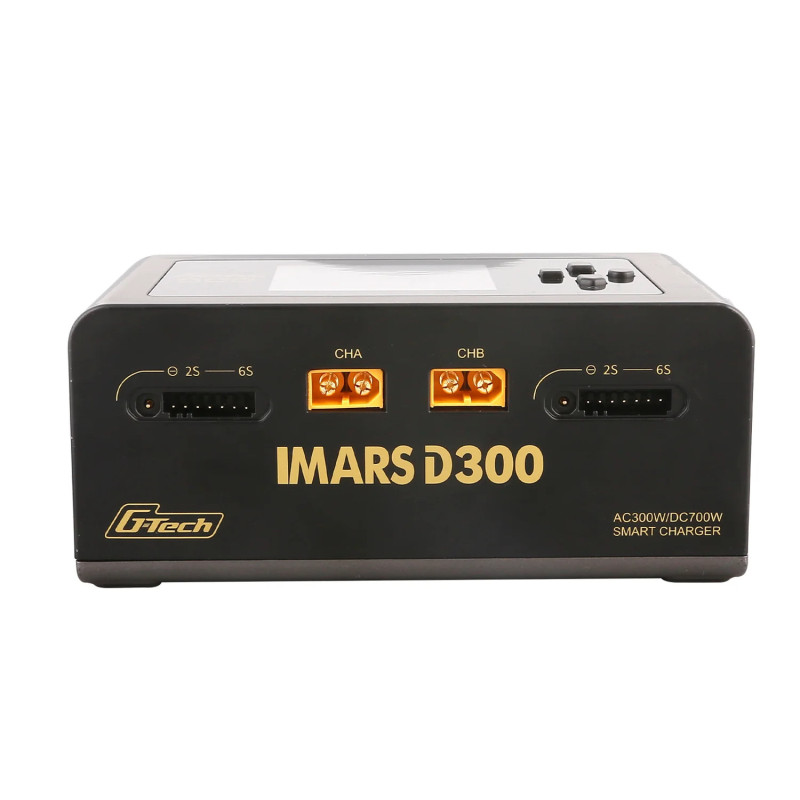

The Imars D300 Charger is a versatile and intelligent charger that supports both charging and discharging. As a member of G-Tech Eco, Imars D300 Charger is designed specifically for the G-Tech smart batteries, but is also compatible with non-smart batteries (all others).

When a G-Tech smart battery is connected to the Imars D300 charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. For non-smart batteries, it is necessary to manually select the battery type and the required working mode to get started.

The Imars D300 Charger offers a range of features, including dual channel AC/DC smart balance charging, a small and lightweight portable design, a wide-view IPS display, and high power charging.

The charger has seven operating modes: charge, discharge, balance, storage, ExtDischarge, SyncCharging, and digital power supply. It offers simple to use and operation.

The Gens Ace iMars dual battery charger charges and discharges on 2 outputs.

The DC power supply (7-30V) allows for a maximum charge of 300W on a single port, and the AC power supply (100-240V) allows for intelligent distribution of the total power.

The total power is 300W (2 channels), the maximum charging current is 16A, the charging current is adjustable, and the use and operation are simple.

7 modes of product operation include charging, discharging, balancing, storing, ExtDischarging, SyncCharging, digital powering.

During the process of charging your battery, the total voltage of the current job, charge/discharge current, charge time and other information can be displayed in real time through the display screen.

It is also possible to know the internal resistance of your battery and the temperature, which is convenient for users to understand the battery performance and charge status.

It is small and convenient to store and carry that you can take it for weekly errands or trips abroad.

The design of heat dissipation can effectively ensure the continuous, stable and reliable operation of the product. Suitable for all radio-controlled car / FPV / Aircraft / Heli / Drone / UAV batteries.

Summary:

• Smart Balance AC/DC dual channel charger - Black version with European plug

• Small, lightweight, portable design with wide-view color display.

• High power charging, capable of 16 amp maximum charge rate for one channel, 100V-240V worldwide voltage versatility, AC 300 Watts, DC 700 Watts.

• External discharge function.

• Synchronous output, 2-in-1 fast charging.

• Built-in DC power source for various devices.

• Controlled heat dissipation system.

• Temperature compensation function.

• Advanced safety features, UL94-V0 flame retardant grade.

• Short circuit, overcurrent, overload and overvoltage protection.

Features:

• Dimensions: 145x76x62mm

• Net weight: 530g

• Input voltage : AC100-240V ; DC7-30V

• Output voltage: DC 1~30V

• Max input current: MAX INPUT CURRENT: DC 30A

• Maximum discharge power: 15W*2 (main port 6W*2, balance port 9W*2)

• Maximum load power: AC 300W; DC 350W*2

• Charging current: 0.1-16A*2

• Discharge current: 0.1~3A*2

• Cell balancing: 1 to 6s

• USB output: 5V/2.4A

• Display type: 2.4 inch IPS LCD Display

• Supported battery chemistry: LiPo/LIHV/LiFe batteries from 1 to 6S; NiMH/Cd from 1 to 16S

• Accessories included : AC input cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
